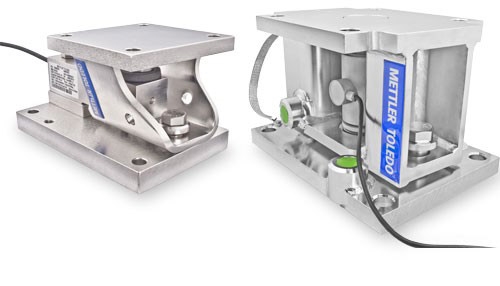

SWB505/SWC515 Multi-Purpose Weigh Modules
Full Safety on Board
All safety features like Lift-Off Protection, 360° Checking, Safety-Downstop are integrated. Thus the system is safe, no matter what.
Installation Made Easy
SafeLock™ locks the Weigh Module at installation and protects the Load Cell from overload. Thus nothing can go wrong during installation. No need to purchase expensive dummy blocks. The weigh module can even be installed without the load cell when load cell damages want to be avoided under all circumstances.
CalFree - Weightless Calibration
Weigh Modules support weightless calibration CalFree. That allows to calibrate tank scales without using test weights.
The product features:
Capacity: from 5kg to 300T
Materials: Zinc Plated, 304, 316 stainless steel
Accuracy: OIML C3, C6, NTEP 5.000d, 10.000d
Hazardous Approvals: ATEX, IECEx, FM, cFM, Nepsi
IP68/IP69K Protection Class
Fully approved to Global Standards
Each Weigh Module is approved to OIML, NTEP for metrology and ATEX, FM and IECEx for hazardous applications as standard.
